ARM Motorsports F3X N55 CHARGE PIPE - AWD F30CPAWD is a BMW tuning and performance upgrade available under reference F30CPAWD. Use this BavariaMotor product guide to compare compatibility, specifications and purchase details.
Buy ARM Motorsports F3X N55 CHARGE PIPE - AWD F30CPAWD for BMW
| Part number | F30CPAWD |
|---|---|
| Supplier / brand | ARM Motorsports |
| Part type | Intakes/Inlets/Outlets/Meth/Charge Pipes |
| Indicative price | Approximately €160.09 at the time the source data was checked. Prices and availability can change. |
BMW compatibility and fitment
Fitment information is a guide, not a substitute for a VIN check. BMW can use different components within the same model year.

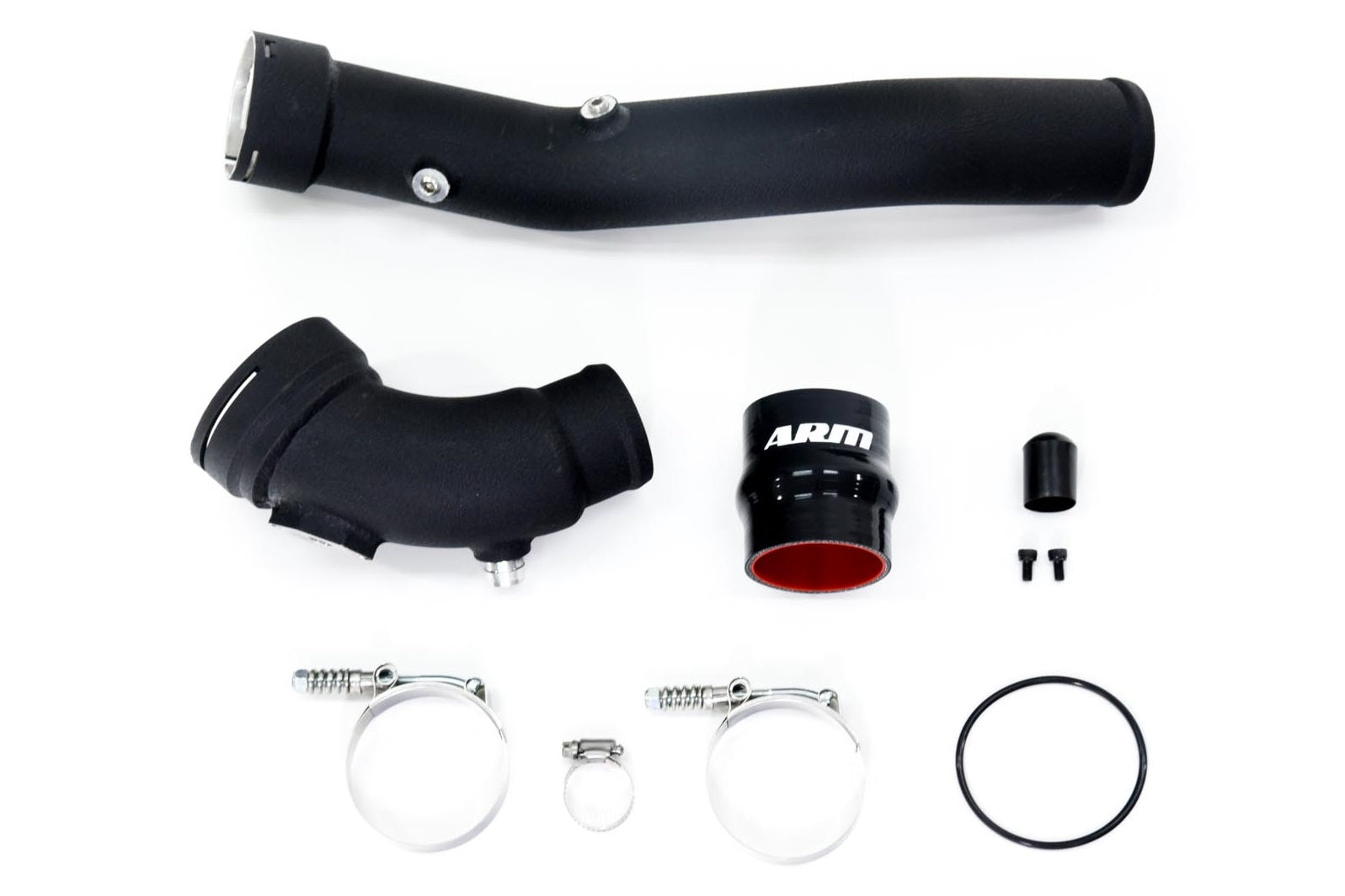

- Complete with Hoses and Hardware PROFILE The F30 N55 doesn't fall far from the tree of its older brother the E90 when it comes to charge piping.
- Like the E90, the F30 charge pipe is made of plastic, and is susceptible to breaking at the most inopportune times, leaving you stranded or at the very least driving home in limp…
- The OEM N55 charge pipe on the F30 is known to crack even on stock boost levels, but it becomes even much more of a risk on tuned cars.
- To remove this weak point on your F30 N55 we've built a charge pipe to handle the most demanding builds.

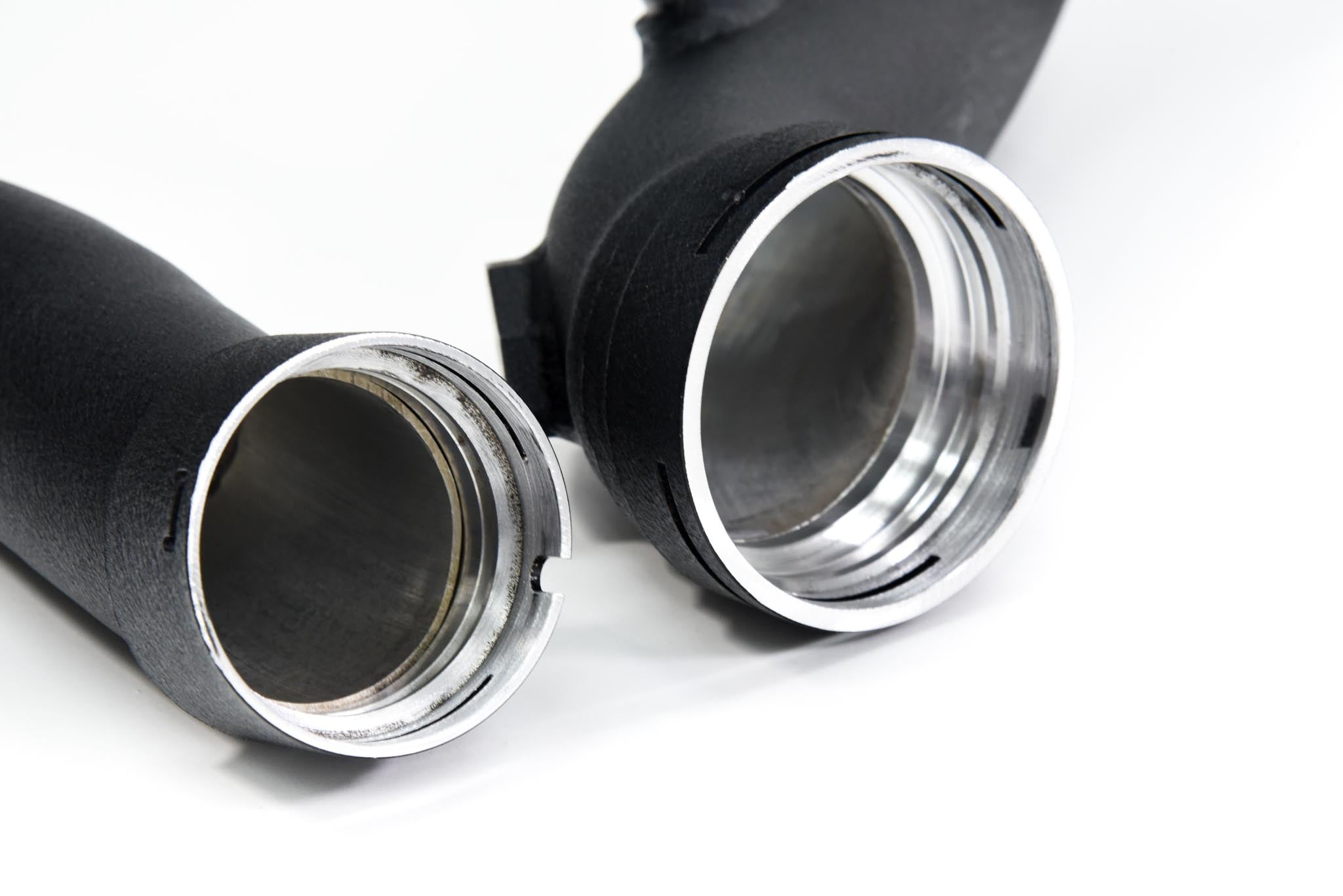

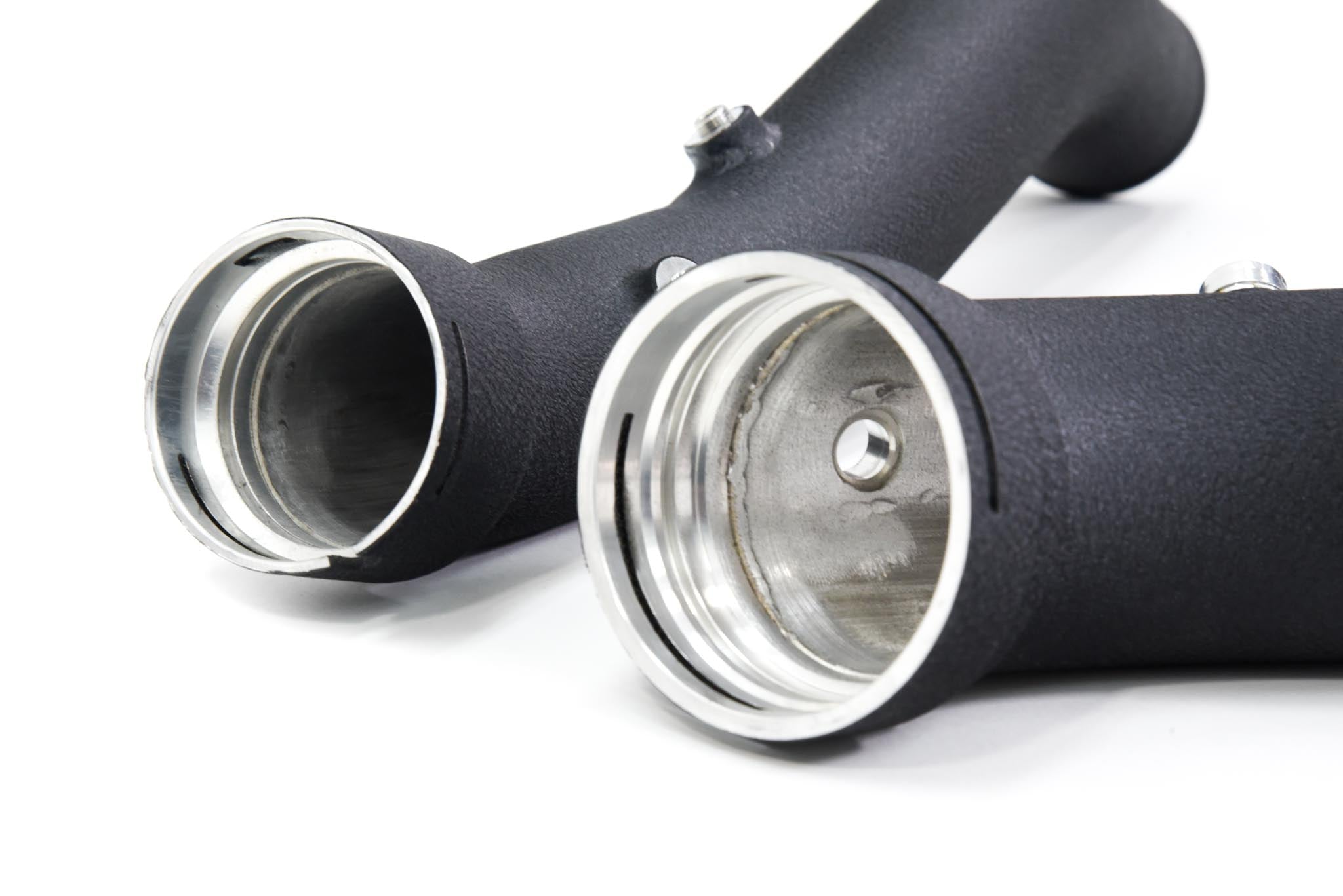

- CONSTRUCTION The ARM motorsports F30 335i charge pipe is constructed of mandrel bent T6061 aluminum for smooth transitions and minimal weld points.
- The ARM F30 N55 AWD Charge Pipe begins with a 3" diameter at the throttle body, which then reduces to a 2.5" diameter to match up perfectly with either the OEM intercooler, the…

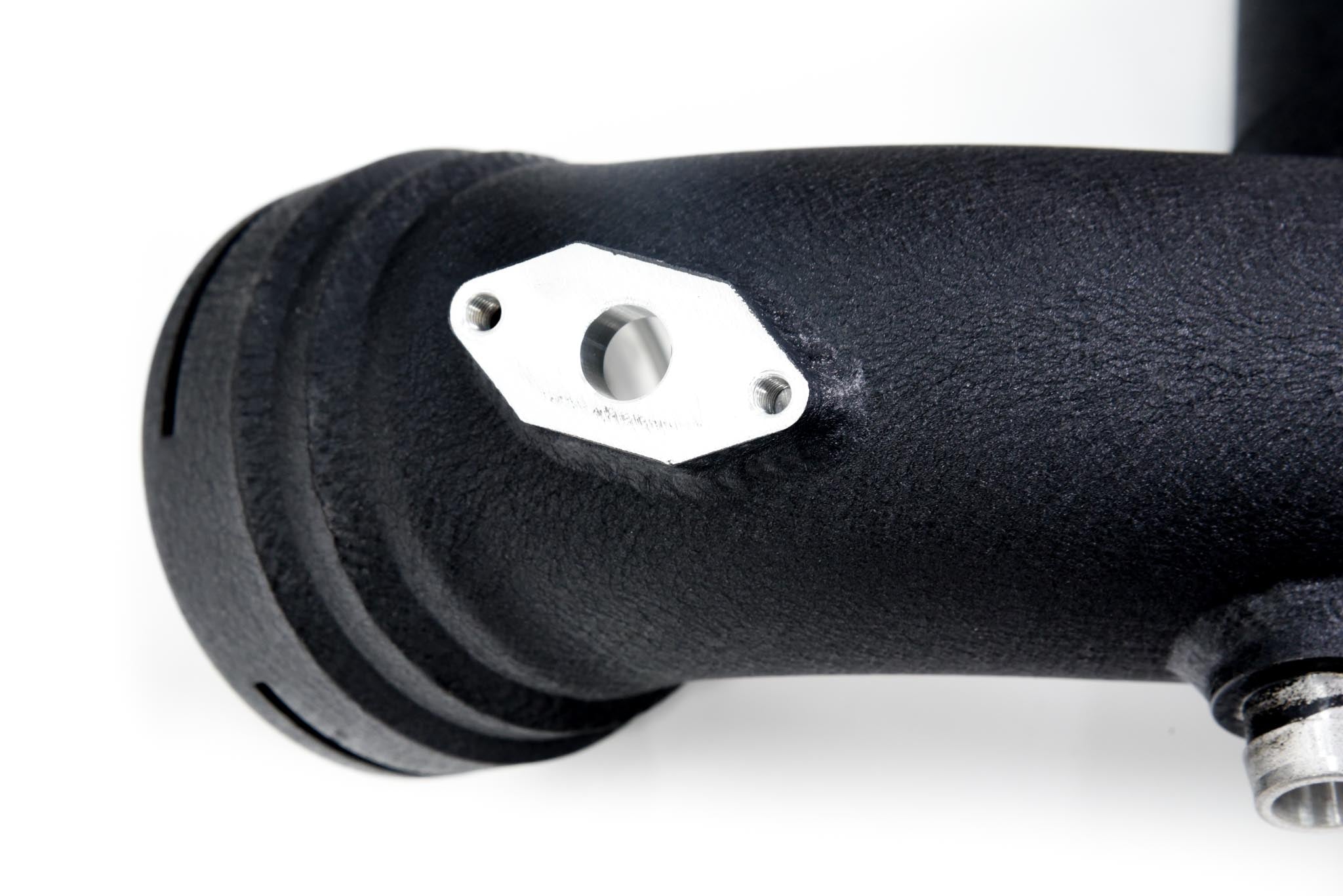

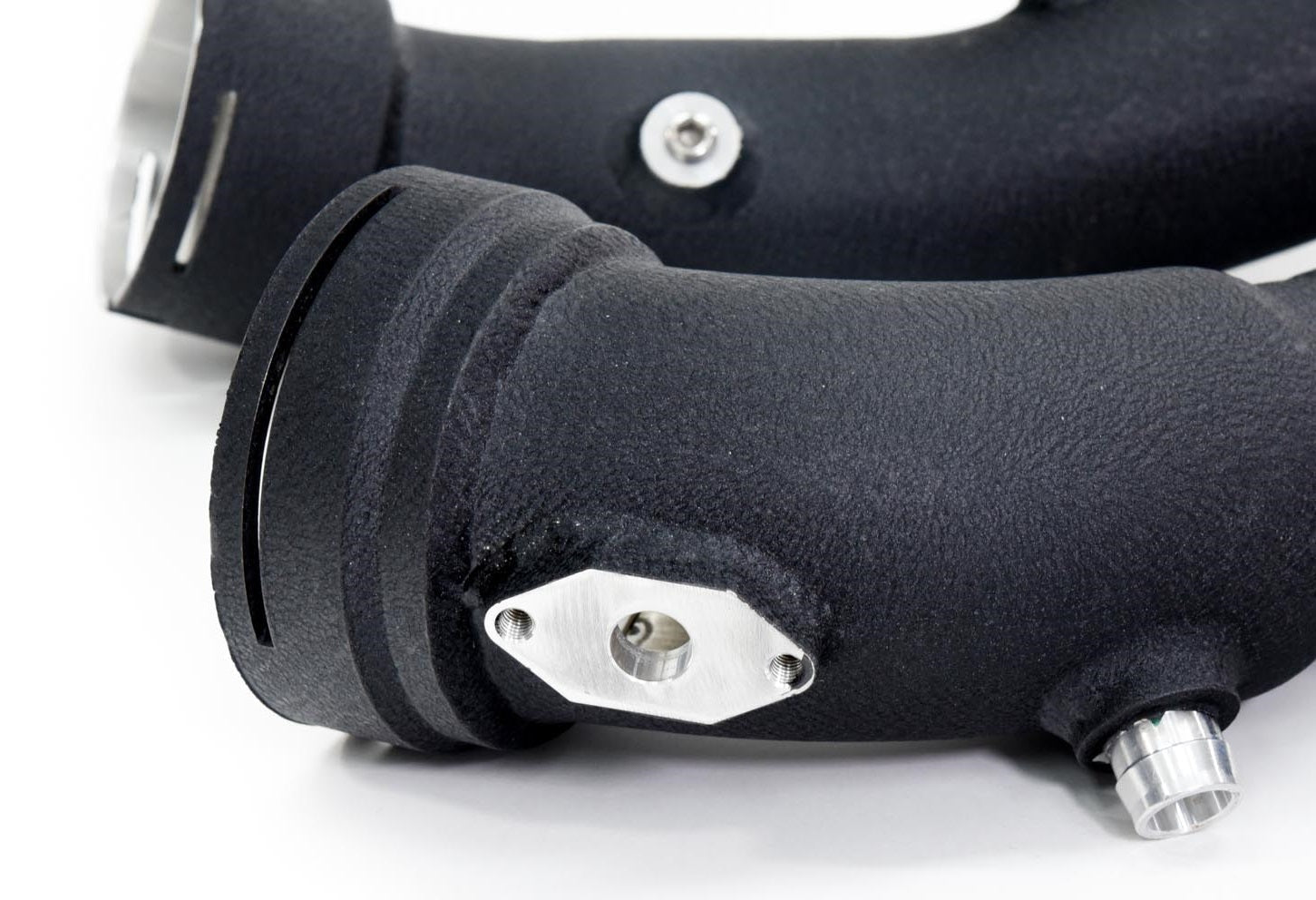

- The ARM F30 N55 AWD Charge Pipe comes with a CNC machined MAP sensor flange for easy reinstallation of the OEM MAP sensor.

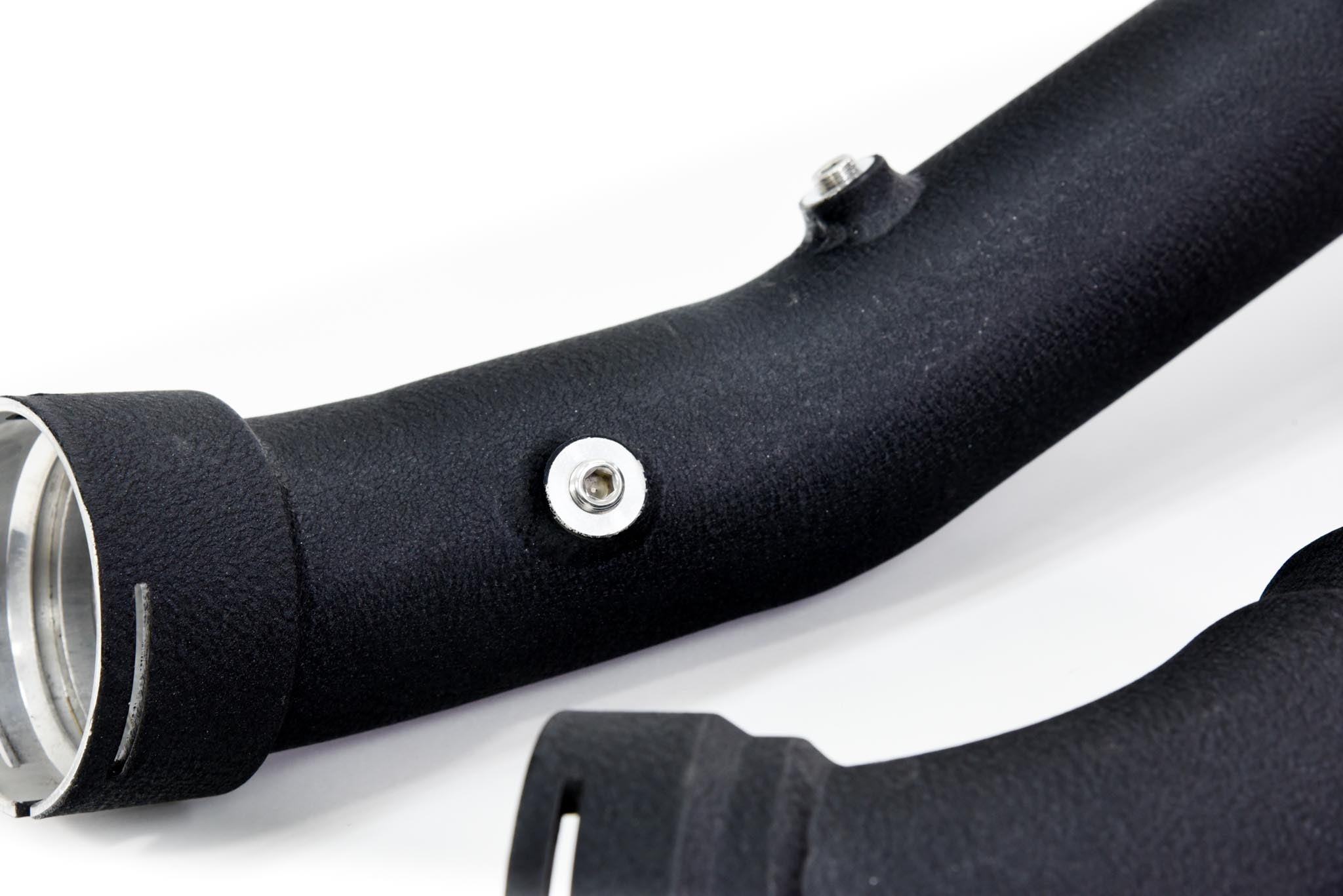

- Built into the ARM F30 AWD Charge Pipe are two 1/8" NPT ports for methanol/nitrous hook up, boost tap, or smoke testing.

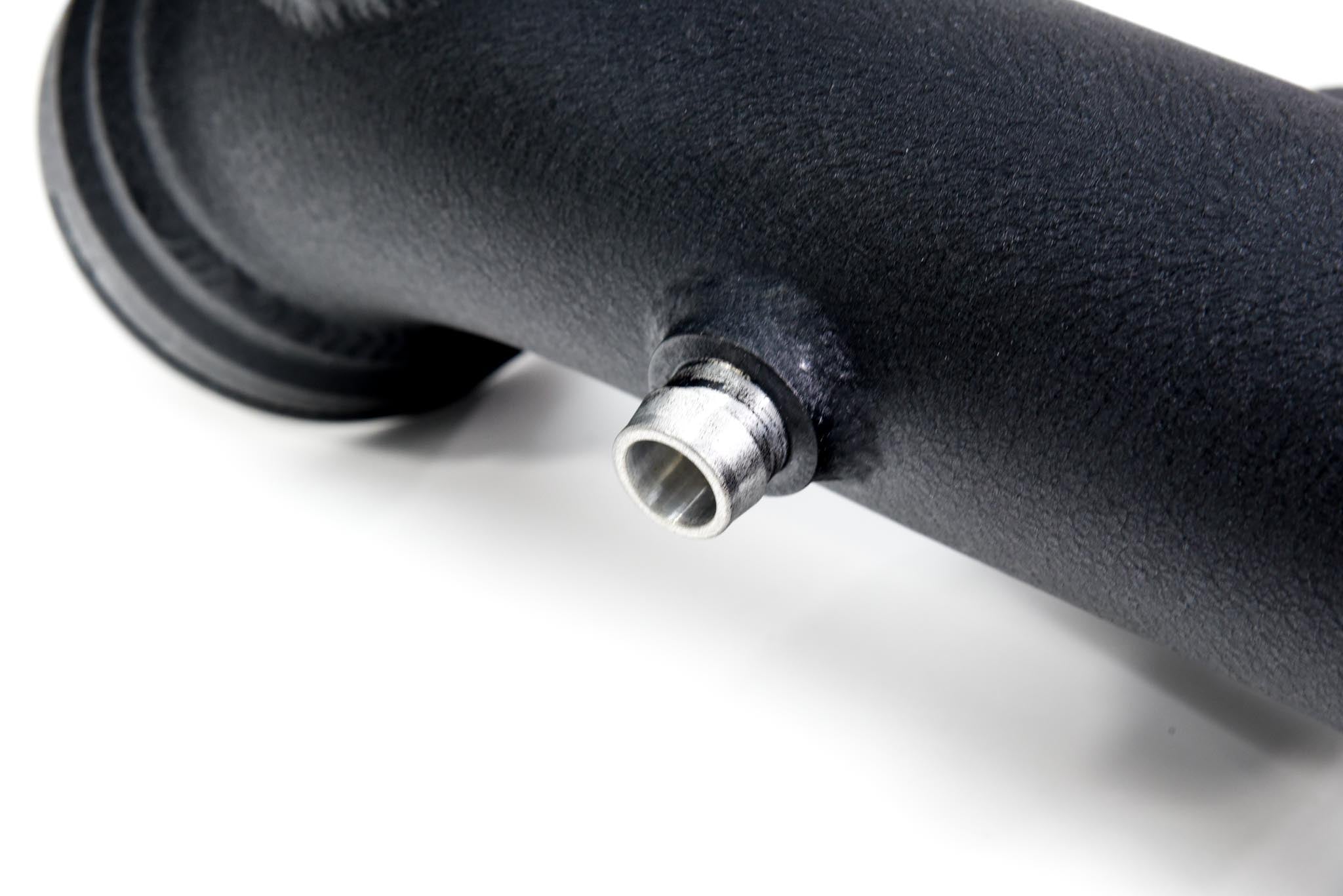

- The ARM F30 N55 Charge Pipe comes with a connection for the transmission vent port for AT cars, on MT models this port is capped off with the included cap and clamp.
- Combine the ARM F30 N55 Charge Pipe with the ARM N55 Turbo Outlet Pipe to completely upgrade the charge-air piping on your AWD F30 N55.
- F30 N55 Charge Pipe AWD - Upper Section
- F30 N55 Charge Pipe AWD - Lower Section
- If you have an RWD F30 N55, you'll need our RWD F30 Charge Pipe.
- Make Chassis Model Engine BMW F25 X3 N55 3.0L BMW F22 M235i N55 3.0L BMW F30 335i N55 3.0L BMW F32 435i N55 3.0L BMW F33 435i N55 3.0L BMW F36 435i N55 3.0L
OEM and cross-reference numbers
F30CPAWD
BMW tuning checks before ordering
- Compare the complete part number, including any superseded number.
- Verify the vehicle VIN, production date, engine and option codes.
- Compare connector, mounting position and left/right orientation where applicable.
- Confirm any required supporting tune, hardware and professional installation.
Frequently asked questions
Will F30CPAWD fit my BMW?
Confirm the reference, chassis, engine, VIN and production date before purchase.
Is the EUR price final?
No. It is an indicative conversion and may exclude delivery, tax, duties or supplier price changes.
Does this performance part require installation or tuning?
Requirements vary by product. Confirm supporting hardware, software and installation needs before ordering.
Compatibility, availability and pricing must be confirmed before ordering.
